T300 Industrial | 5G Industrial Router
◆ echnical specificationLBT-T300 Product parameterSoftware functionInternet access mode4/5G dial-up DHCP/Static IP/PPPoENumber of supported usersWired: 253, wireless: 30Operating system requirementsWindows XP/VISTA Linux 2.6 Windows 7 or later MAC OS: 10.3.7 or laterBrowser requirementsInternet Exp
- Product details
- Specification parameter
- Data download
- Prototype application
◆ echnical specification
| LBT-T300 Product parameter | |
| Software function | |
| Internet access mode | 4/5G dial-up DHCP/Static IP/PPPoE |
| Number of supported users | Wired: 253, wireless: 30 |
| Operating system requirements | Windows XP/VISTA Linux 2.6 Windows 7 or later MAC OS: 10.3.7 or later |
| Browser requirements | Internet Explorer :6.0 or later Safari:1.2.4 or later Firefox:2.0.0.8 or later |
| Safety management | MAC filtering: disables the added MAC addresses |
| Set a firewall: prevent malicious attacks on computers on the LAN from the Internet | |
| Access control: Controls the Internet access permissions of computers on the LAN | |
| Port blocking: Prevents viruses from continuously launching connections through a port to prevent Dos attacks | |
| System service | Virtual server: Set an internal server for Internet users to access |
| DMZ: If the open port of the virtual server to be set is uncertain, you can set it as a DMZ host | |
| Port trigger: The wireless router can automatically open inward service ports based on the port used by the LAN to access the Internet | |
| Serial port service: serial port data transmission, AT command control and other functions | |
| Equipment management | Area Settings, restoring factory Settings, NTP server Settings, backing up system Settings, and restoring Settings from files |
| Software upgrade, remote management, reboot, password change | |
| WLAN security mode | WPAPSK, wpa-psk, wpa2-psk, Open System, WPA2PSK(that is, wPA-psk and, WPA2 mixed modes), wPA2-psk mixed modes), WPA1WPA2(that is, WPA and |
| Hardware parameter | |
| Antenna | SMA external rotation of the inner hole |
| Wireless interface | IEEE802.11ac/b/g/n |
| Operating frequency band | 2412-2472MHz/5180-5825Mhz |
| WIFI transmission rate | 1167Mbps（MAX） |

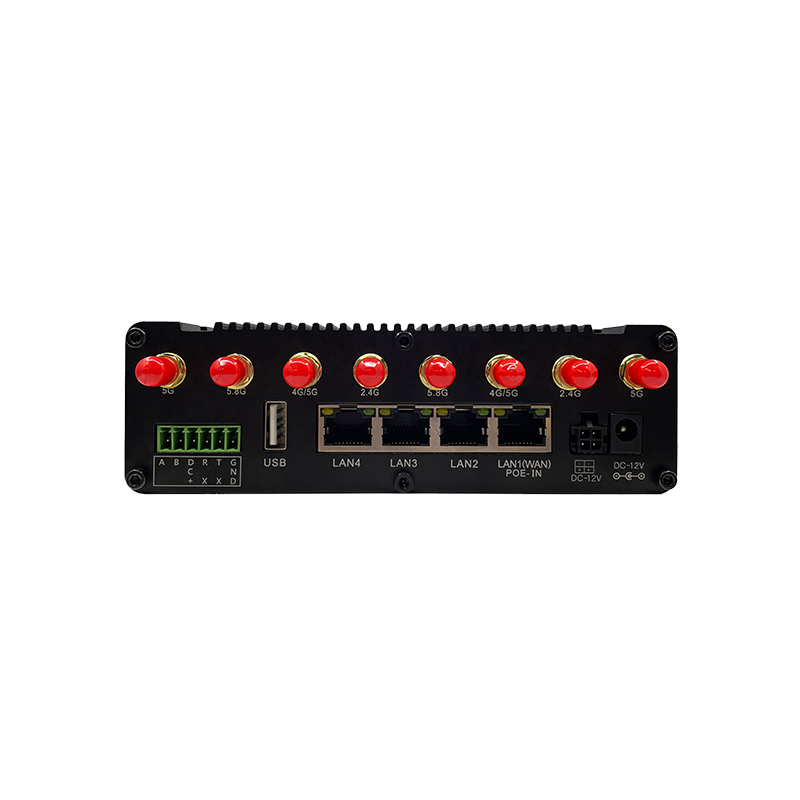

| External interface | Reset key: 1 |
| Indicator light: 6 | |
| Antenna interface: 8 PCS (optional) | |
| SIM card slot: 1 | |
| DC power port: 1 | |
| RS232/485 port: 1 | |
| LAN ports: 4 (LAN1 is WAN/LAN adaptive) | |
| WiFi data | 802.11ac:-90dBm at 867Mbps |
| 802.11b: -86dBm at 11Mbps/CCK: +23dBm | |
| 802.11g: -73dBm at 54Mbps/OFDM: +26dBm | |
| 802.11n: -66dBm at 300Mbps/HT40 MCS7 +23dBm | |
| Supported frequency band (optional) | GN(Domestic - Qualcomm)：5G Sub-6: n1, n28, n41, n77, n78, n79 |
| LTE FDD：B1, B2, B3, B5, B7, B8, | |
| LTE TDD：B34, B39, B40, B41 | |
| GN(Domestic - Exhibition Sharp)：5G Sub-6: n1, n28, n41, n78, n79 | |
| LTE FDD：B1, B2, B3, B5, B7, B8, | |
| LTE TDD：B34, B38,B39, B40, B41 | |
| Asia-europe and Australia：n1/3/5/8/20/28/38/41/77/78//79/B1/3/5/7/8/19/20/28/B38/40/41/42/43 | |
| Storage memory | Storage 16MB, memory 128MB [built-in chip], main frequency: 880Mhz |
| Power supply | Dc power supply: 12V/3A |
| Power consumption (current) | Less than 800mA |
| Overall dimension | Length width height: 97*78.2*25.1mm (without antenna interface) |
| Working environment | Operating temperature: -30°C ~ +70°C |
| Storage temperature: -40°C ~ +85°C | |
| Humidity: 5%~95%, no condensation | |
| certification | CE、FCC、CCC |
