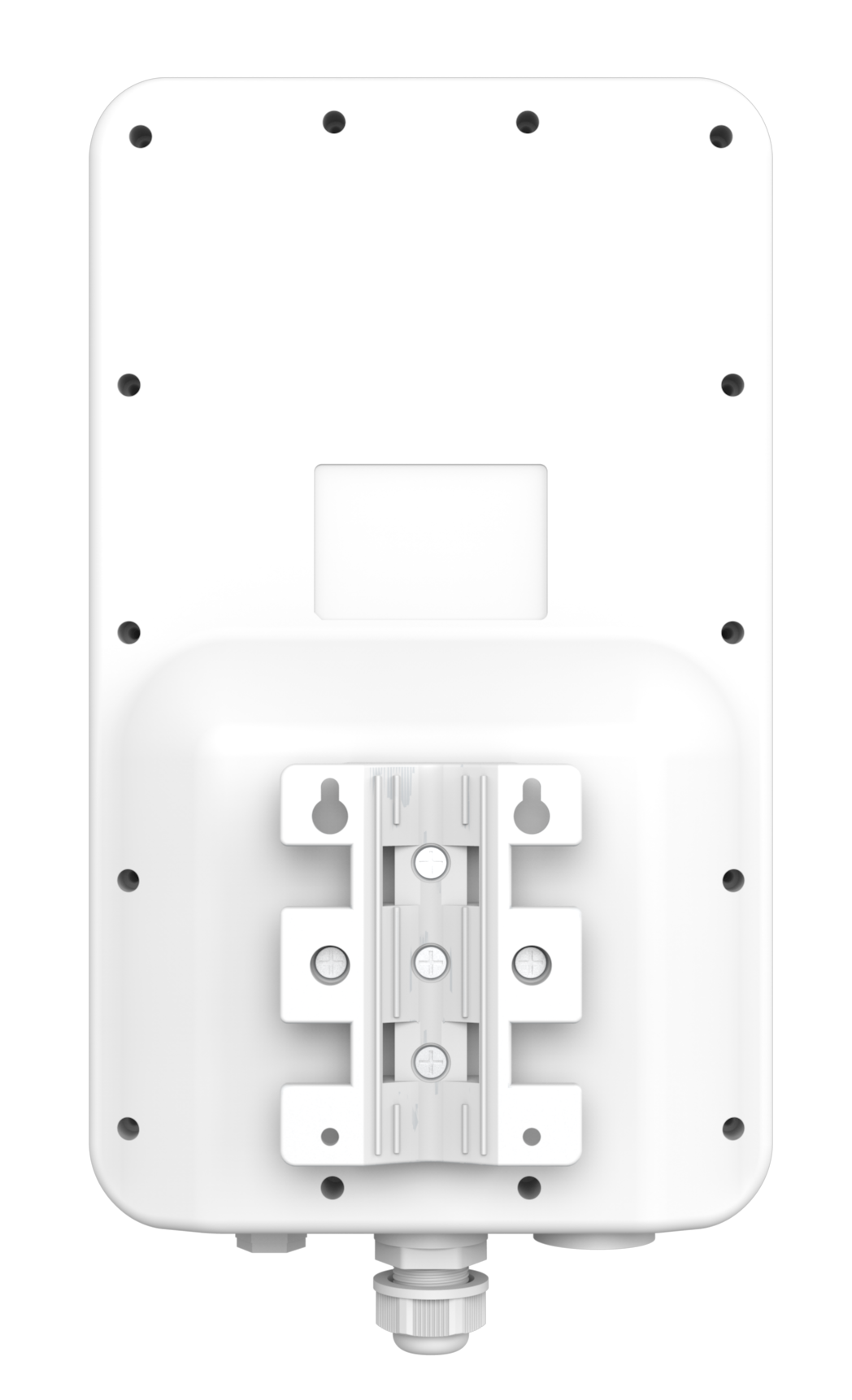

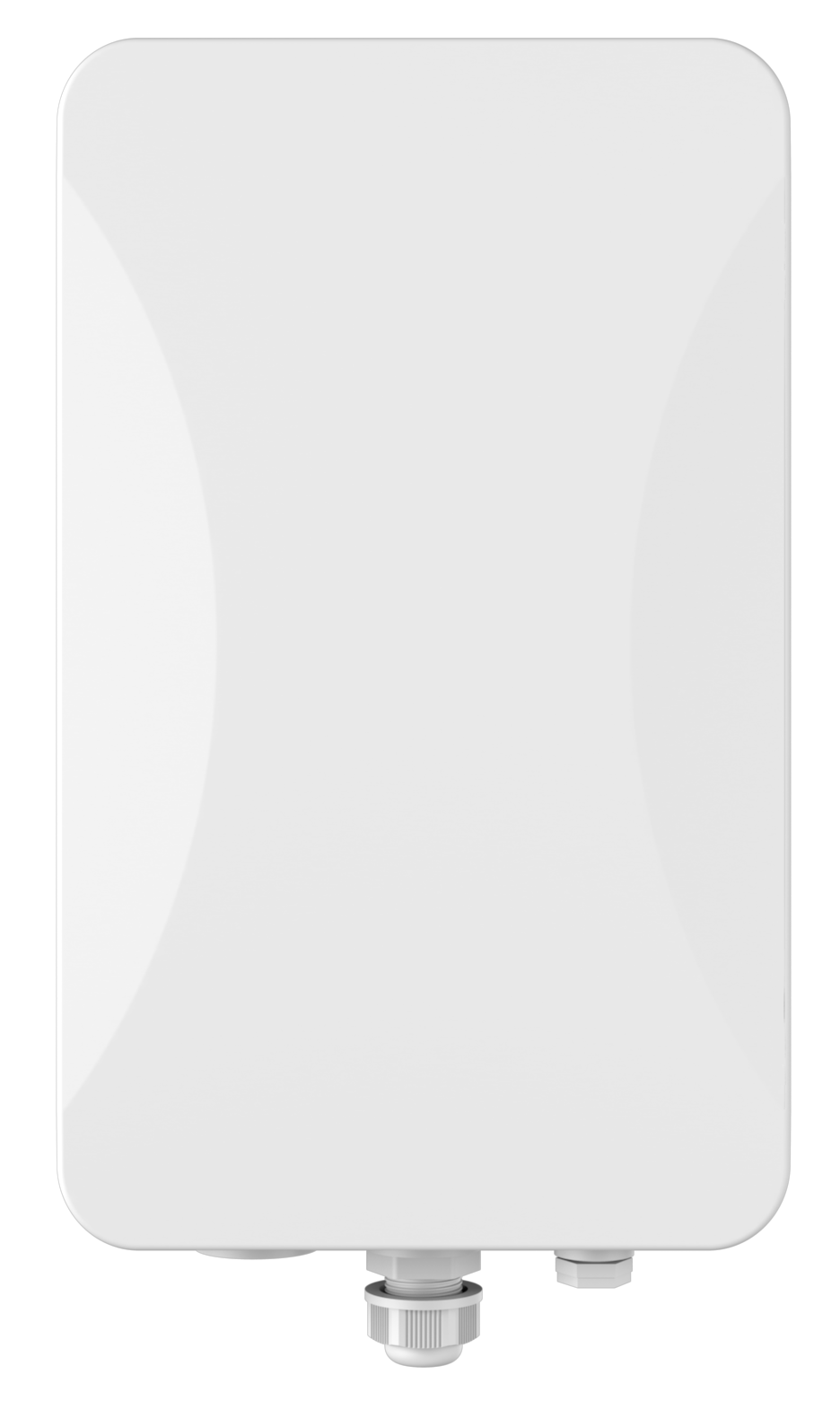

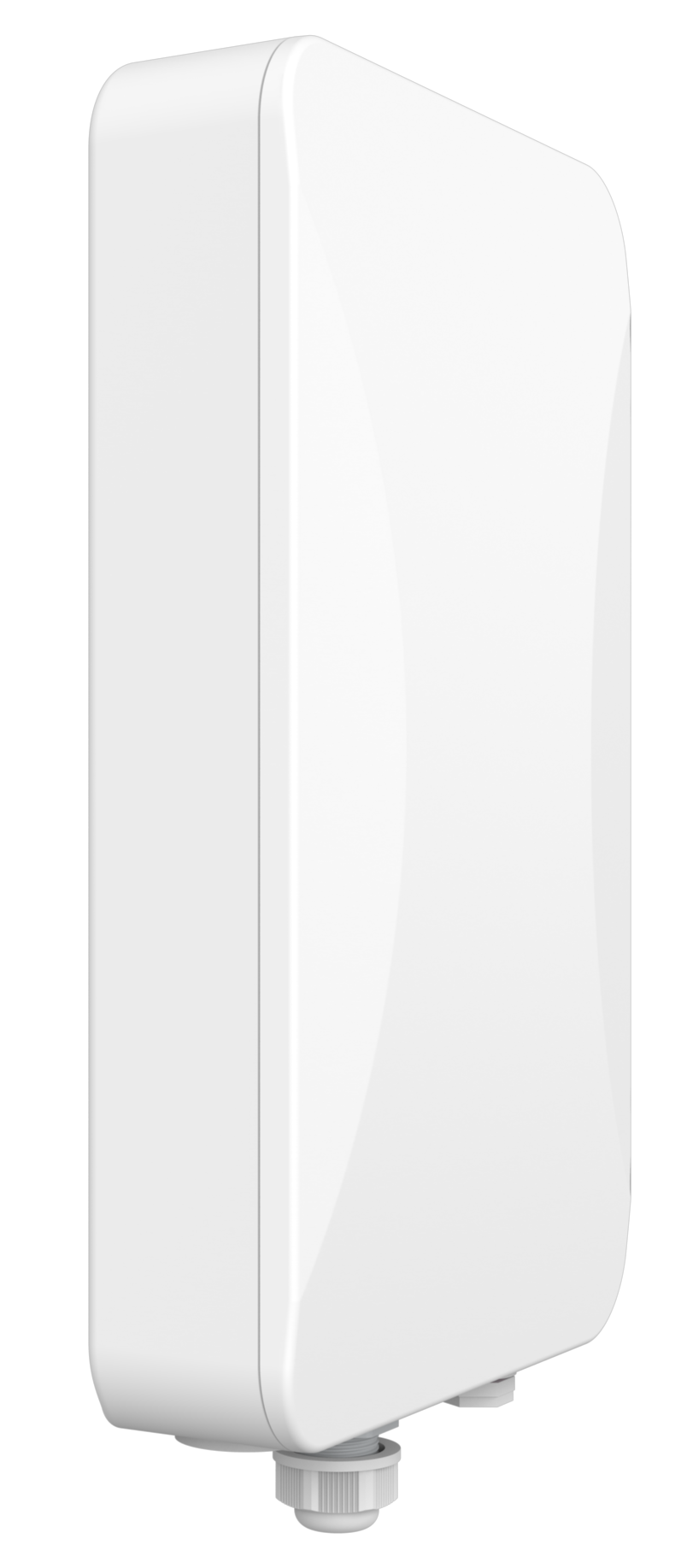

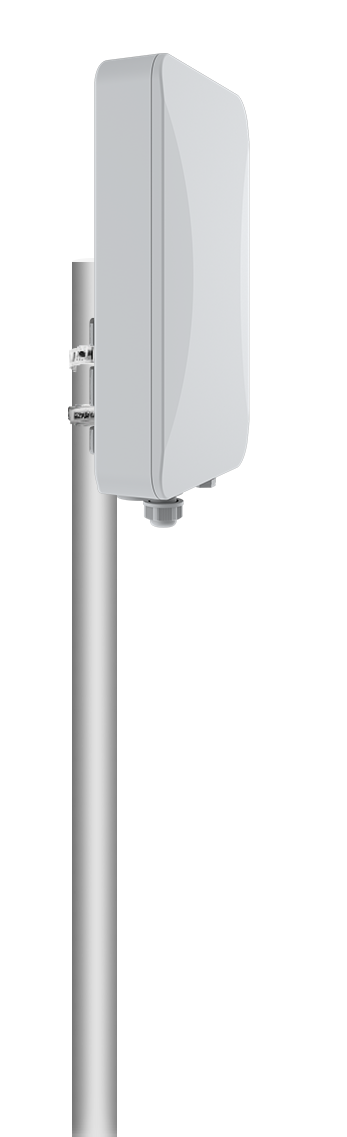

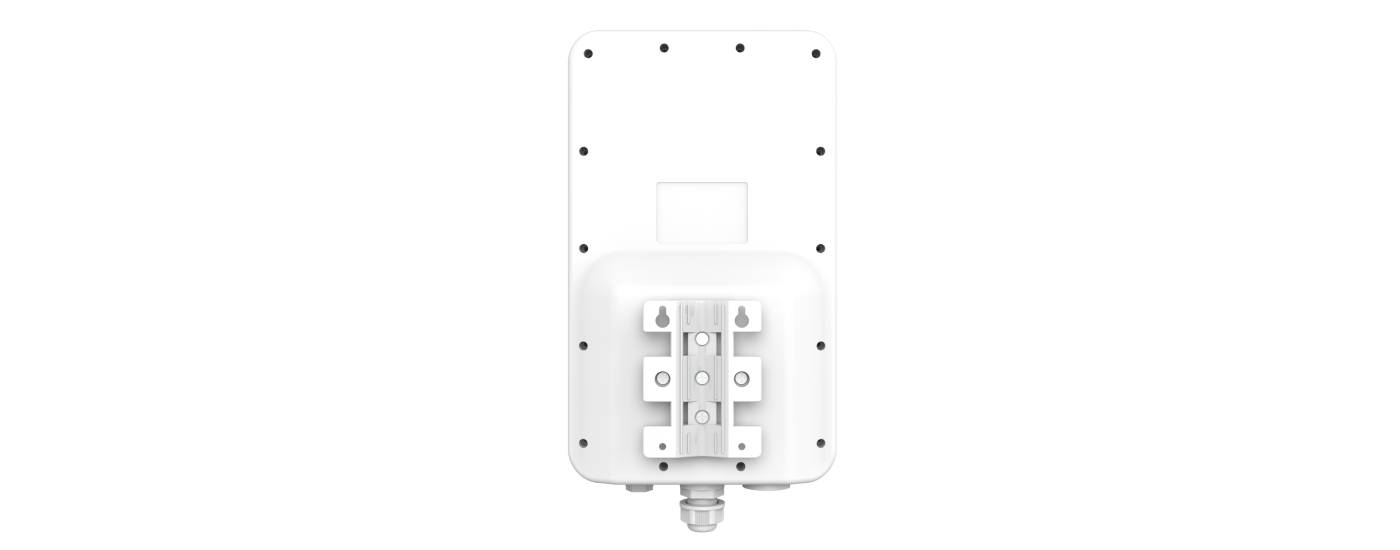

LBT-T300（HQ835）|无线AP
- 规格参数
- 数据下载
| 硬件规格 | |||||
| 产品型号 | LBT-T300（HQ835） | ||||
| CPU | MT7981B+MT7976CN+7531AE | ||||
| Flash | SPI NOR 16MB | ||||
| DDR3 | 256M | ||||
| 2.4G工作频段 | 2.4GHz ~ 2.484GHz | ||||
| 2.4G WIFI传输协议 | 802.11 b / g / n / ac / ax | ||||
| 5G工作频段 | 5.150GHz～5.850GHz | ||||
| 5G WIFI传输协议 | 802.11 a / n / ac / ax | ||||
| 内置双频天线 | 4根2.4G/5G双频天线，2.4G增益：5dBi，5G增益：7dbi | ||||
| 最高速率 | 2.4G 最高提供 574Mbps 的接入速率，5G 最高提供 2402Mbps 的接入速率 | ||||
| 2.4G无线功率 | 802.11b | 11M | 23±2dBm | 1M | 23±2dBm |
| 802.11g | 54M | 20±2dBm | 6M | 22±2dBm | |
| 802.11n HT20 | MCS7 | 19±2dBm | MCS0 | 21±2dBm | |
| 802.11n HT40 | MCS7 | 19±2dBm | MCS0 | 21±2dBm | |
| 802.11ax HT20 | MCS11 | 17±2dBm | MCS0 | 21±2dBm | |
| 802.11ax HT40 | MCS11 | 17±2dBm | MCS0 | 21±2dBm | |
| 5G无线功率 | 802.11a | 54M | 20±2dBm | 6M | 23±2dBm |
| 802.11n HT20 | MCS7 | 19±2dBm | MCS0 | 21±2dBm | |
| 802.11n HT40 | MCS7 | 19±2dBm | MCS0 | 21±2dBm | |
| 802.11ac HT20 | MCS8 | 19±2dBm | MCS0 | 21±2dBm | |
| 802.11ac HT40 | MCS9 | 19±2dBm | MCS0 | 21±2dBm | |
| 802.11ac HT80 | MCS9 | 18±2dBm | MCS0 | 21±2dBm | |
| 802.11ax HT20 | MCS11 | 18±2dBm | MCS0 | 21±2dBm | |
| 802.11ax HT40 | MCS11 | 18±2dBm | MCS0 | 21±2dBm | |
| 802.11ax HT80 | MCS11 | 17±2dBm | MCS0 | 21±2dBm | |
| 802.11ax HT160 | MCS11 | 16±2dBm | MCS0 | 19±2dBm | |
| 2.4G接收灵敏度 | 802.11b | 11M | -87dBm | 1M | -96dBm |
| 802.11g | 54M | -75dBm | 6M | -93dBm | |
| 802.11n HT20 | MCS7 | -73dBm | MCS0 | -92dBm | |
| 802.11n HT40 | MCS7 | -70dBm | MCS0 | -89dBm | |
| 802.11ax HT20 | MCS11 | -64dBm | MCS0 | -92dBm | |
| 802.11ax HT40 | MCS11 | -61dBm | MCS0 | -89dBm | |
| 5G接收灵敏度 | 802.11a | 54M | -74dBm | 6M | -92dBm |
| 802.11n HT20 | MCS7 | -73dBm | MCS0 | -90dBm | |
| 802.11n HT40 | MCS7 | -70dBm | MCS0 | -87dBm | |
| 802.11ac HT20 | MCS8 | -67dBm | MCS0 | -91dBm | |
| 802.11ac HT40 | MCS9 | -63dBm | MCS0 | -88dBm | |
| 802.11ac HT80 | MCS9 | -60dBm | MCS0 | -84dBm | |
| 802.11ax HT20 | MCS11 | -62dBm | MCS0 | -91dBm | |
| 802.11ax HT40 | MCS11 | -59dBm | MCS0 | -89dBm | |
| 802.11ax HT80 | MCS11 | -56dBm | MCS0 | -86dBm | |
| 802.11ax HT160 | MCS11 | -53dBm | MCS0 | -83dBm | |
| 2.4G EVM | 802.11b:≤-10 dB ；802.11g: ≤-25 dB ；802.11n:≤-28 dB；802.11ax:≤-35 dB | ||||
| 5G EVM | 802.11a:≤-25 dB ；802.11n: ≤-28 dB ；802.11ac:≤-32 dB；802.11ax:≤-35 dB | ||||
| 频偏（ppm） | ±20ppm | ||||

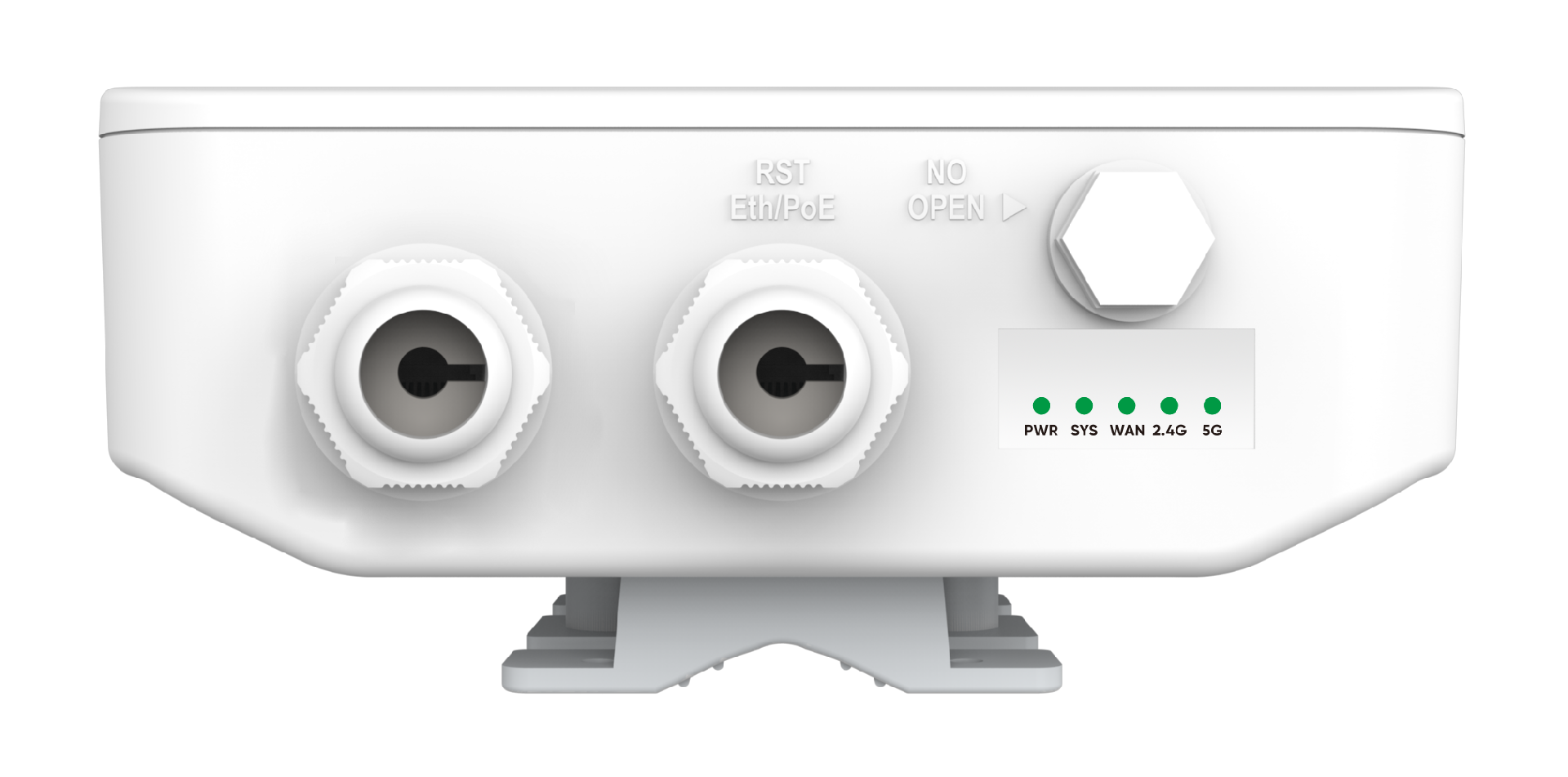

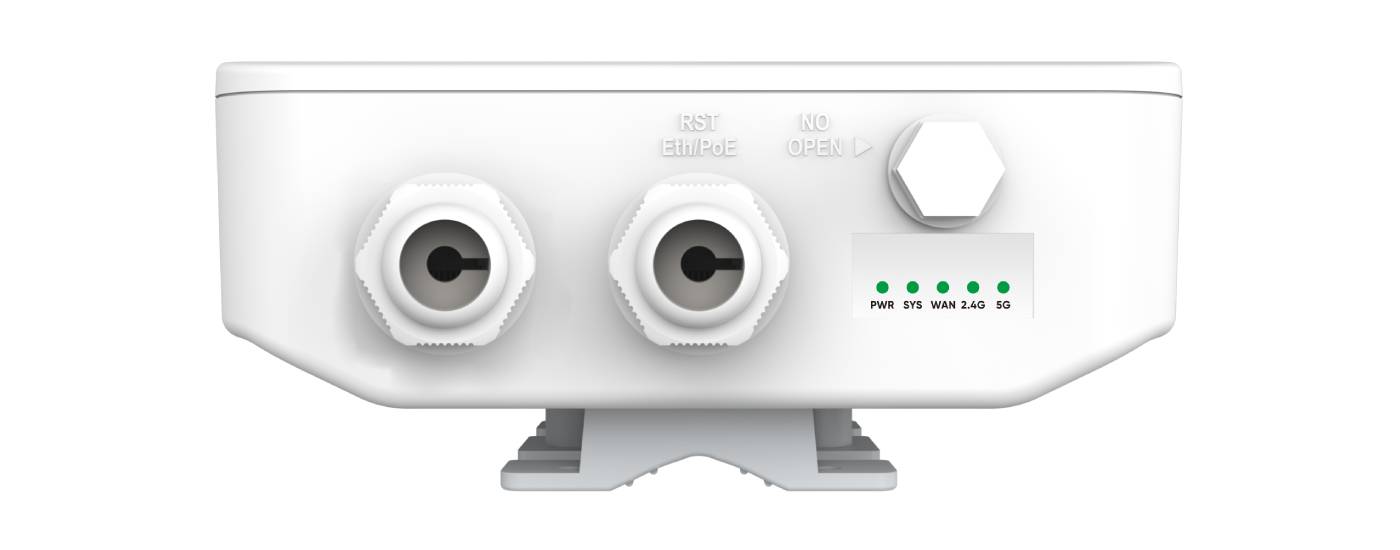

| 接口 (RJ45) | 1个10/100/1000Mbps自适应WAN 口,支持POE 48V 供电； | ||||
| 接口 (RJ45) | 1个10/100/1000Mbps自适应LAN 口; | ||||
| 外部按键 | reset键（长按6-10秒恢复出厂默认配置） | ||||
| 状态指示灯 | SYS灯、LAN灯、WAN口灯、2.4G灯、5.8G灯 | ||||
| 供电 | PoE 802.3at | ||||
| 最大功耗 | < 18W | ||||
| 产品尺寸 | 304mm × 181mm × 88mm | ||||
| 重量 | 1.6kg | ||||
| 工作环境 | 正常工作温度:-30°C to 55°C；存储温度: -40°C to 70°C；湿度：5％～95％（无凝结） | ||||
| 防护等级 | IP67 | ||||
| ESD | 空气放电 +/-8kV，接触放电 +/-6kV | ||||
| 浪涌 | 共模4kV，差模2kV | ||||
